碳纤维碳化装备

首条国产高性能碳纤维千吨生产线缔造者

最大单线产能
最低能耗

精工科技成功研制出“千吨级高性能碳纤维生产线”，成为第一条国产高性能碳纤维千吨生产线的缔造者。整线品质经行业权威专家鉴定达国际先进水平，满足T700-T1200高强度系列、M40J-M65J高模量系列碳纤维的生产需要。国际先进的设备和工艺，经验丰富的安装调试团队，确保生产线8个月顺利投产，为伙伴开启时代机遇的大门。

首创千吨级高性能碳纤维装备生产线

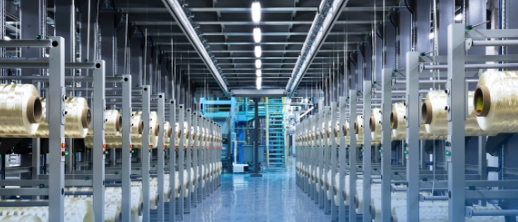

放丝机

放丝机

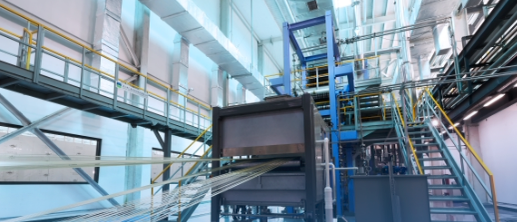

加湿站

加湿站

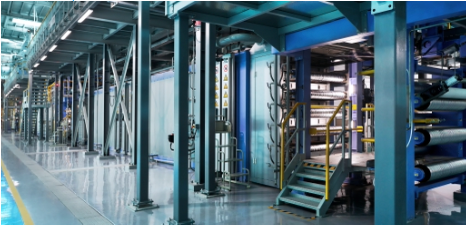

氧化炉

氧化炉

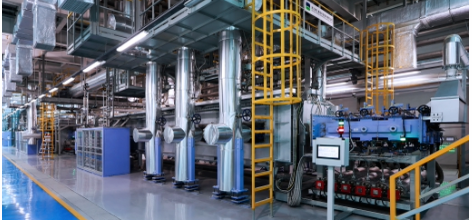

低碳炉

低碳炉

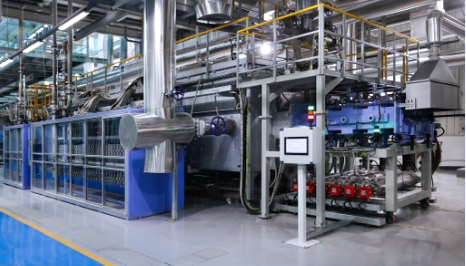

高碳炉

高碳炉

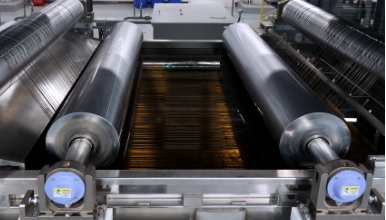

水洗

水洗

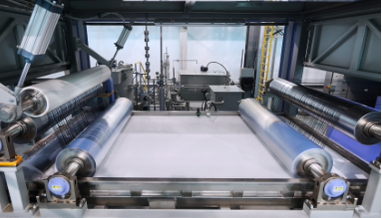

上浆

上浆

非接触干燥

热定型

分丝罗拉架

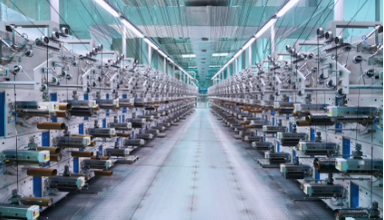

收丝机

收丝机

碳化装备价值优势

从替代到超越，开启中国高端碳纤维无限可能

精工科技以国产首条千吨级高性能碳纤维生产线的缔造者之姿，率先实现从技术追赶到价值引领的跨越。产线生产速度可达22m/min，有效宽幅可达3.5米以上，连续稳定运行周期超过90天。我们不只是替代进口，而是以更快的走丝速度、更大的宽幅、更长的稳定运行周期，重新定义碳纤维装备的价值标准，为全球伙伴开启高端碳纤维的无限可能。

-精工技术

-精工品质

-精工交付

-精工服务

01
模块化关键设备，极大缩短项目工期
02
分散式精准管控，让生产安全稳定
03
天然气/微波加热，减少单位能耗
04
比肩日美标准，实现连续高品质生产
05
推进国产化，大幅度减少项目投资
06
全自动智能集中控制，让操作更高效
4.0
加工中心工业
100%
出厂合格率
40%
比国际一流供应商节省工期
90+
国际领先的连续运行时间(天)
22m
每分钟运行速度
核心材料及电气国际一线品牌，整线交钥匙工程，核心设备全球交付,10个月投产，40+整线项目交付案例，一次性开车
10
投产(个月)
40+
整线项目交付案例
40人+
工艺技术服务团队
安装、调试与工艺包
13年
安装调试经验
2小时
响应时间
24小时
出解决方案
48小时
到现场

基本参数

JCTX300系列

丝束规格

K

12K 24K 48K

原丝单锭重量

Kg

Max 500

丝束有效工作宽度

mm

3000

丝束数量

Tow

424 244 150

最高运行速度

m/min

22

预氧炉数量

Set

3~6 根据不同原丝和工艺

预氧炉额定温度

℃

300

低碳炉温区数量

Zone

5-8

低碳炉额定温度

℃

1000

高碳炉温区数量

Zone

5-8

高碳炉额定温度

℃

2000

超高温石墨化炉温区数量

Zone

3-5

超高温石墨化炉额定温度

℃

2800
