Carbonization Equipment

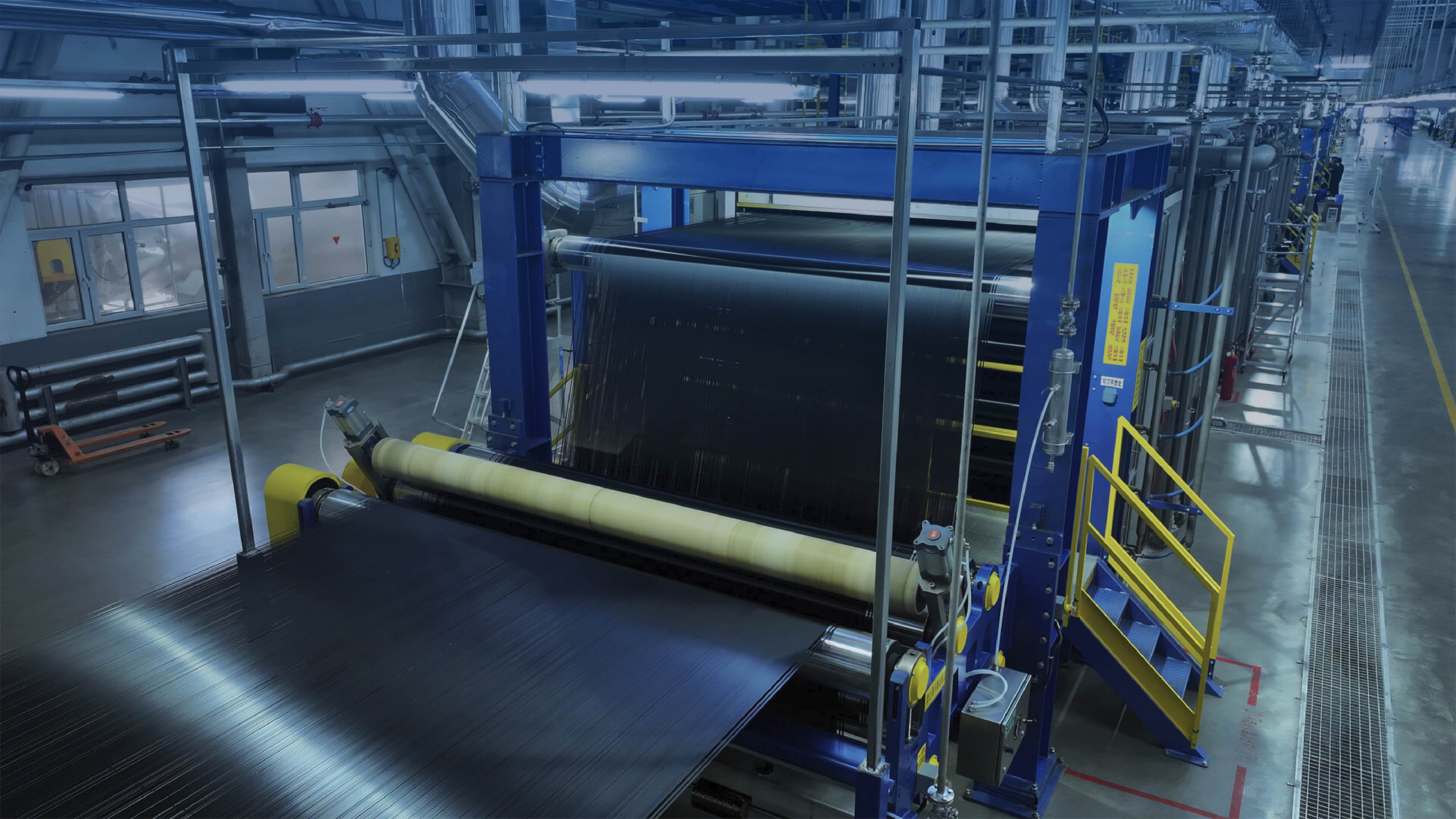

Jinggong Technology has developed China's first localized kilo-ton-per-year high-performance carbon fiber production line. Appraised by authoritative industry experts as reaching internationally advanced levels. it fully supports T400-T1200 high-strength and M40J-M65J high-modulus carbon fibers. Backed by world-class equipment, mature processes and an experienced installation and commissioning team, the line goes into smooth operation in just 10 months. unlocking new growth opportunities for partners.

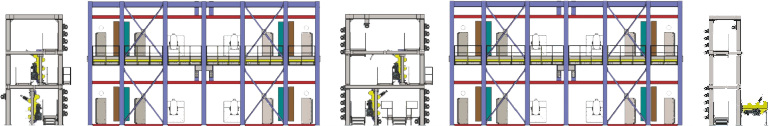

PIONEERING THE KILO-TON-CLASS HIGH-PERFORMANCE CARBON FIBER PRODUCTION LINE
Creel
Moisture Station
Oxidation Oven
LT Furnace
HT Furnace
Water washing
Sizing
Non-contact drying
Heat setting
Separator roller frame
Winder
Value advantage of carbonization equipment
As the developer of China's first domestically developed kilo-ton-per-year high-performance carbon fiber production line. Jinggong Technology leads the leap from technological catch-up to value leadership. With a line speed of 22 m/min. an effective width of over 3.5 m and more than 90 days of continuous stable operation, we go far beyond import substitution. We redefine value benchmarks for carbon fiber equipment with faster line speed, wider effective width and longer continuous stable operation. unlocking the boundless potential of high-end carbon fiber for global partners.
-Jinggong Technology
-Jinggong Quality
-Jinggong Delivery
-Jinggong Service
Basic Parameters
JCTX300 Series
Tow Specifications
K
12K 24K 48K
Precursor Bobbin Weight
Kg
Max 500
Effective Width
mm
3000
Tow Quantity
Tow
424 244 150
Maximum Processing Speed
m/min
22
Oxidation Oven Quantity
Set
3~6 Based on Different Precursorsand Processes
Oxidation Oven Rated Temperature
℃
300
LT Furnace Zone Quantity
Zone
5-8
LT Furnace Rated Temperature
℃
1000
HT Furnace Zone Quantity
Zone
5-8
HT Furnace Rated Temperature
℃
2000
UHT Furnace Zone Quantity
Zone
3-5
UHT Furnace Rated Temperature
℃
2800
